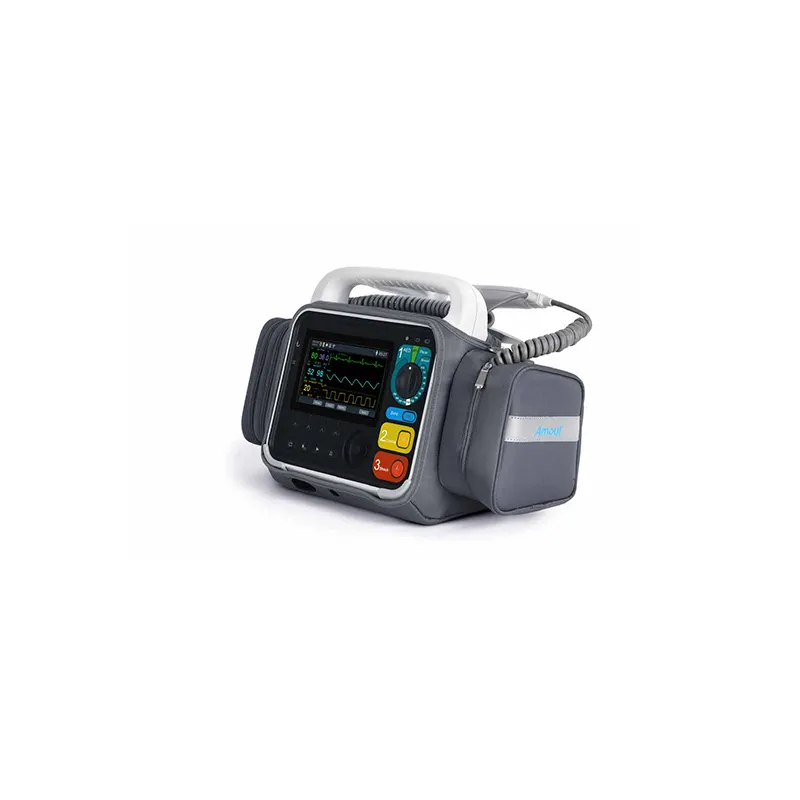

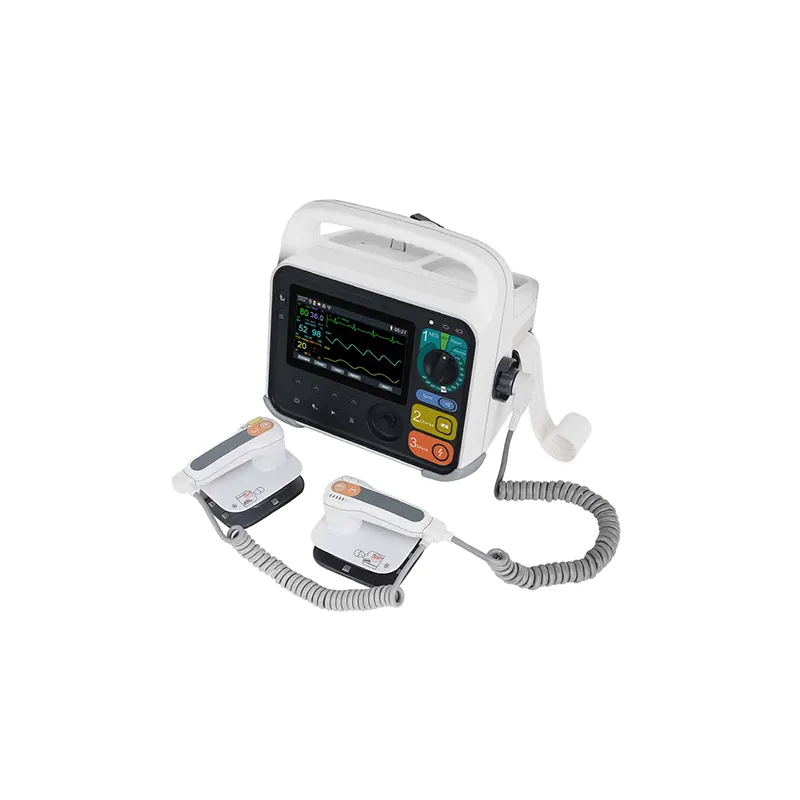

HSP-i6 AED Defibrillator Machine

Model: HSP- i6

Product origin: CHINA

Warranty: 1 Year

After-sales Service: Online Technical Support

Inquire Now Add to Basket Next Product

Description

The HSP-i6 Defibrillator Machine is a compact, multifunctional emergency cardiac device designed for rapid response in pre-hospital and in-hospital environments. It integrates manual defibrillation, AED operation, non-invasive pacing, and multi-parameter patient monitoring into a single portable unit.
Featuring biphasic defibrillation technology, fast charging time, and an intuitive user interface, the i6 helps healthcare professionals deliver accurate and effective life-saving treatment in ambulances, emergency departments, and critical care units.

Main Features

• 4-in-1 Emergency Functionality: Manual defibrillation, AED mode, pacing, and patient monitoring in one device

• Biphasic Defibrillation Waveform: Optimized energy delivery with impedance compensation

• Wide Energy Selection: Adjustable energy levels up to 360 J for adult and pediatric patients

• Fast Charging Performance: Rapid charge time supports immediate shock delivery in emergencies

• Non-Invasive Pacing (NIP): Fixed and on-demand pacing modes with adjustable rate and current

• Multi-Parameter Monitoring: ECG as standard, with optional SpO₂, NIBP, RESP, TEMP, and EtCO₂

• Clear Display & Simple Operation: Real-time waveform display for quick clinical decision-making

• Portable & Durable Design: Ideal for ambulance, emergency room, ICU, and patient transport use

Specification

General	Description
Size	320x200x120mm
Weight	5.2 kg
Power sources	AC:100-240V,50/60Hz;Battery:rechargeable lithium-ion battery pack
Defibrillator	Description
Waveform	Biphasic truncated exponential waveform(BTE)with impedance compensation
Impedance range	25Ω~200Ω(External defibrillation)
Energy selections	1,2,3，4，5，6,7，8，9，10,15,20,30,50，70，100，150，170,200，300，and 360J
Charge time	Reach 200 J in less than 5 seconds with a new,fully charged battery; Reach 360 J in less than 8 seconds with a new,fully charged battery
Modes	Manual mode: asynchronous and synchronous defibrillation: AED mode
Non-invasive Pacing	Description
Modes	Fixed and on-demand mode
Waveform	Monophasic square wave pulse
Pulse	Rate:40ppm~170ppm±1.5%; Current: 0mA~200mA ±5% or ±5mA whichever is greater.
Monitoring	Description
Monitoring parameters	Three curves, 5-lead ECG, SpO₂,non-invasive blood pressure, respiration, EtCO2(i6Pro only) temperature (TI&T2) and events.
Network solution	Description
Standards	Wired and 5G wireless networks
