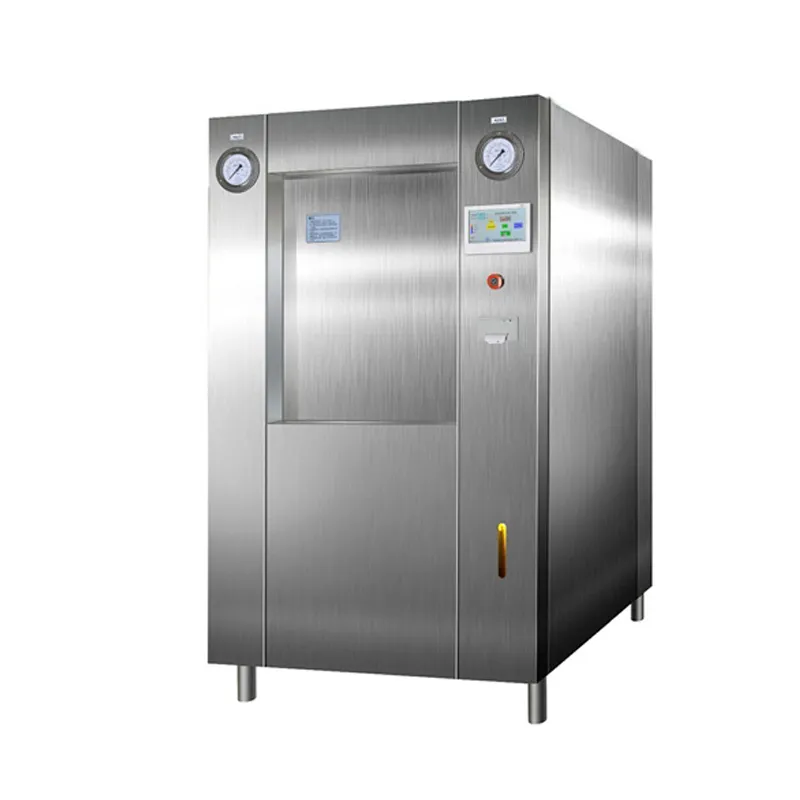

PS-V300 Horizontal Steam Steilizer For CSSD

Model: PS-V300

Certificate: CE / ISO

After-sales Service: Online technical support

Warranty: 1-Year

1. Control system:

-It uses the embedded Linux operating system which is the same as Android, with powerful functions and stable performance. Built-in manual and automatic operation programs, fully display and record the status of the sterilization process and related data information;

-7-inch ultra-large touch screen, the display interface is clear and easy to operate

-Through permissions, you can set: exhaust, temperature, sterilization time and other parameters;

-The system can store nearly 100 sterilization records, which can be checked at any time or output through a printer (printer is optional);

-There are 3 levels of operation passwords to ensure the operation permissions at all levels; fault information is displayed in Chinese;

2. Performance:

-Working temperature range: 105~130℃, temperature control display resolution 0.1℃;

-Working pressure range: 0~230kPa, pressure display resolution 1kPa;

-Automatic water addition and replenishment, dynamic water level display, low water level alarm prompt, and automatic heater cut-off;

-Temperature verification interface that meets GMP standards;

-Self-sealing silicone rubber sealing ring, good sealing effect, easy maintenance, and long service life;

-Door interlock device to ensure that the unloading door is opened only after sterilization is completed.

-The rectangular appearance with spray-coated decorative panels makes the equipment look neat and beautiful, and is easier to clean and maintain.

3. Configuration:

-The container body with a jacket, the sterilization chamber is made of high-quality SUS304 stainless steel, which is durable;

-It comes with a SUS304 stainless steel steam generator;

-It uses high-quality imported Italian zero-pressure start solenoid valve;

-Dot matrix printer, which can permanently save sterilization data (optional).

4. Safety performance:

-Automatic protection against leakage current and overcurrent;

-Alarm system: ultra-high temperature, ultra-low temperature, water shortage, ultra-high voltage power failure alarm;

-Overpressure alarm, ultra-high pressure forced exhaust device;

-Quick door safety interlock function to ensure that the sterilization chamber cannot be opened when there is pressure;
