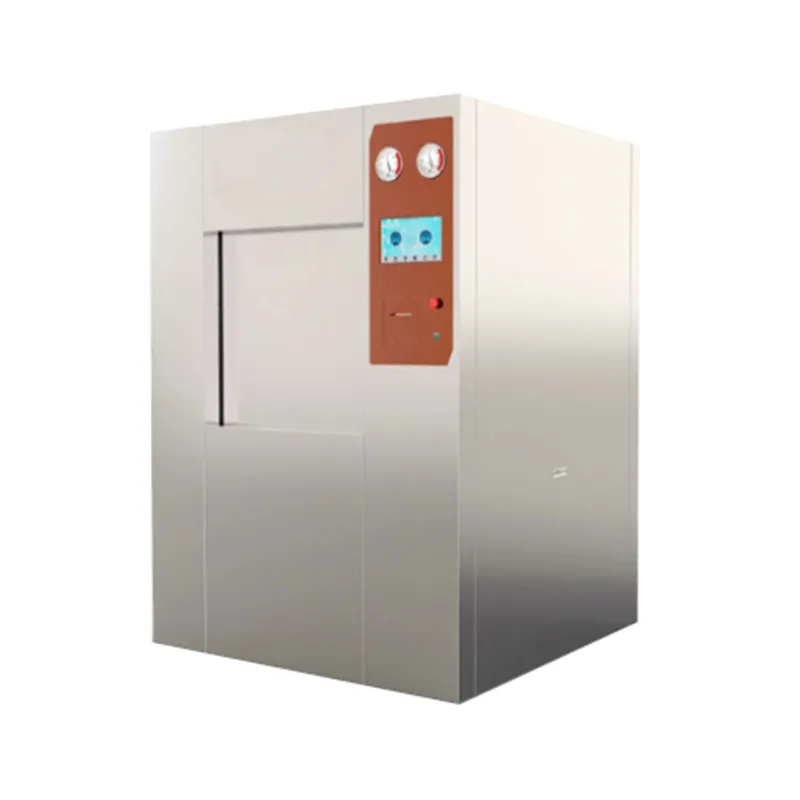

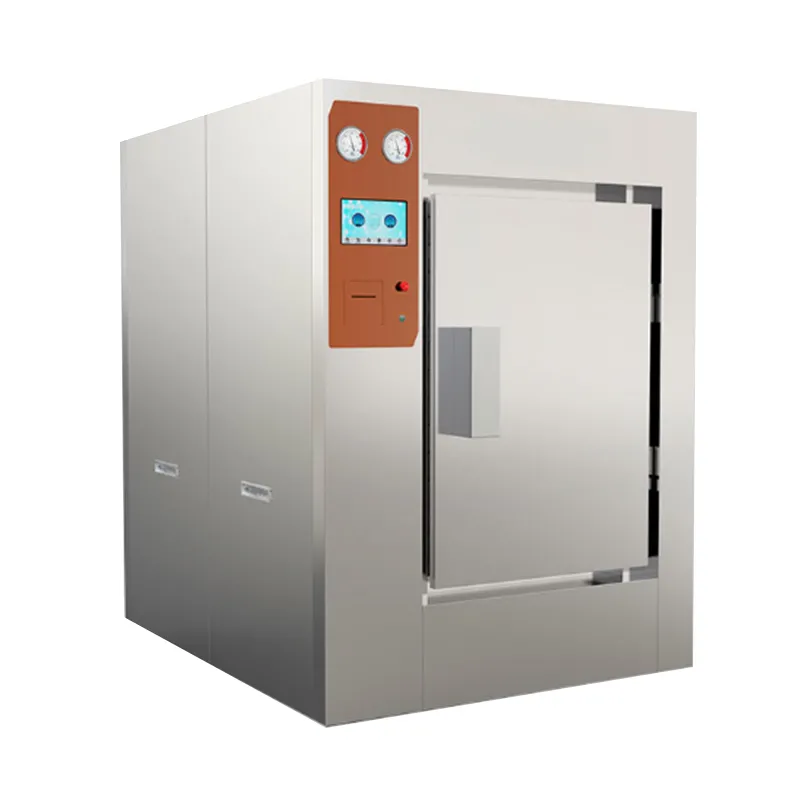

MD·JD-360S Hinge Door Pulsating Vacuum Autoclave
MD·JD-360S Hinge Door Pulsating Vacuum Autoclave
MD·JD-360S Hinge Door Pulsating Vacuum Autoclave
MD·JD-360S Hinge Door Pulsating Vacuum Autoclave

MD·JD-360S Hinge Door Pulsating Vacuum Autoclave

Model: MD·JD-360S

Chamber volume: 360L

Certificate: CE / ISO

After-sales Service: Online technical support

Warranty:  1-Year



Share:
Inquire Now Add to Basket

Main features

-Double door access type

-Horizontal sterilization chamber, rectangular section, European (GETINGE)

annular reinforcing rib jacket structure

-The bottom surface of the inner chamber adopts a sinking funnel process designtoensure the discharge of condensed water in the inner chamber;

- The materials that come into contact with steam, such as the inner tank and door

panel, are all S30408 stainless steel

-Unique pulsation vacuum process: negative pressure pulsation, trans-pressurepulsation

-The inner chamber can choose independent steam inlet design, multi-channel steaminlet design

-Pipeline system: 304 stainless steel sanitary pipe, clamp connection, all welds arewelded by automatic pipe welding machine;

-It has an automatic adjustment system for the drainage temperature, andthedrainage temperature is less than or equal to 55℃. (Water tank temperature control discharge)

-The outer decorative cover is made of mirror frosted anti-fingerprint 304 stainless

steel, the surface is easy to clean.






Specification


Sterilization ClassEuropean Class B standard  Autoclave
Capacity360 liters
Sterilizing temperature121°C,134°C
Pre-set modeFor the sterilization of instruments , sterile clothing , rubber stoppers , aluminum caps , raw materials , filters , culture media and other items with high sterilization requirements Sterilization
Dry procedureVacuum drying
DisplayLCD screen  ,  touch screen
Voltage380 V±10%, 50Hz
Printer and USB PortPrint by integrated thermal mini-printer and download from USB port ( Sterilizing data)


Chamber design press -0.1~0.3Mpa
Chamber safety valve pressure 0.28Mpa
Jacket design pressure 0.3Mpa
Jacket safety valve pressure 0.28Mpa
Set tempreture 150℃
Max working temp 139℃
Temperature uniformit ±0.5℃
Temperature control accuracy 0-2℃
Max working press 0.28Mpa
Vacuum leak rates ≤0.13KPa/min
Negative pressure pulse vacuum Amplitude : -80~0KPa, Times : 1-99
Pulsations across pressure Amplitude : -80-80KPa ,Times : 1
Ultimate vacuum -96KPa
Positive pressure pulsation times 1~3
