Auto Lensmeter

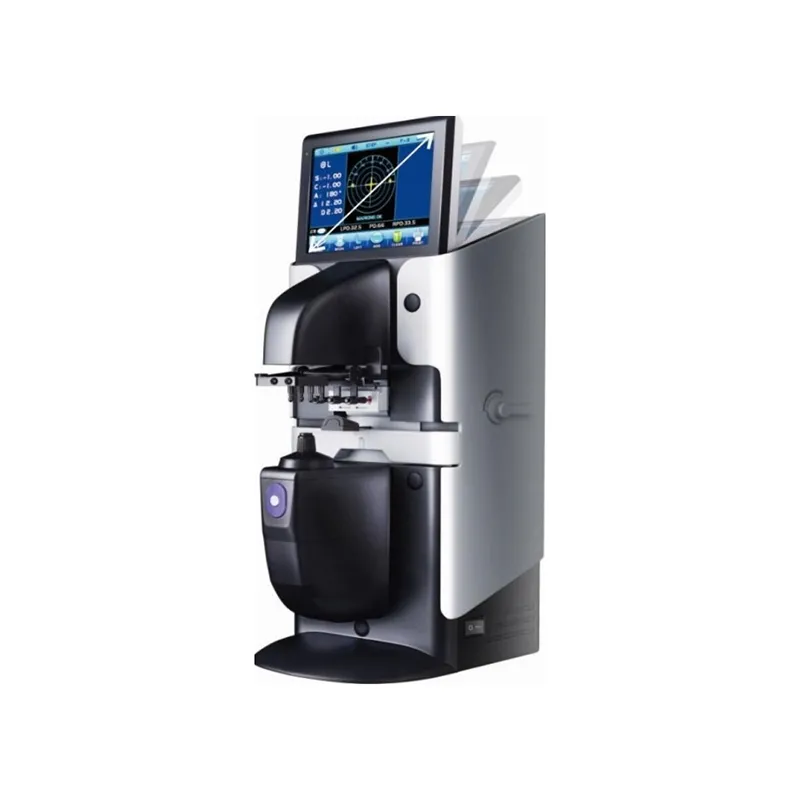

HSP-JD2600A Auto Lensmeter
HSP-JD2600A Auto Lensmeter

HSP-JD2600A Auto Lensmeter

Share:

Model: HSP-JD2600A/HSP-JD2600B

Product origin: China

Warranty: 1 Year

After-sales Service: Online Technical Support


Main Features

1.Adjustable LCD display screen

-Tilt color screen provides you with clear view from any position such as sitting and standing.

2.Sensitive touch LCD display screen

-You just touch the screen to finish your measurement, the operation could be easier and more convenient. This new generation auto lensmeter is based on Hartmann Sensor technology. Advanced simultaneous measurement of 108 points provides a faster measurement with greater accuracy and reliability.

3.Measurement screen

-Easy to use with recognizable icons.

-The JD-2600A provides a user-friendly graphical interface for an immediate understanding.

4.Progressive measurement

-A graph helps the operator to improve accuracy and speed in the measurement of near and far vision.

5.Automatic recognition of single and progressive lens

6.Hi-speed UV measurement

-Just hold the lens through the sensor, the display will easily indicate the UV measurement by the progress bar.

7.Built-in thermal printer

-Quick data print with built-in printer. Easy to reload printing paper.

-Built-in UV tester

Specification

Range of measurement
Sphere0~±25D 0.01/0.12/0.25D step
Cylinder0~±9.99D 0.01/0.12/0.25D step
Axis0~180° (1° step)
Add0~+9.99D 0.01/0.12/0.25D step
Prism degree0~15△ 0.01/0.12/0.25D step
Measurement mode
Cylinder+,+/-,-
PrismX-Y, P-B
Contact lensSoft/hard
Measuring modeSingle/progressive/ automatic recognition
Specification
Diameter of lensΦ20~108mm
PD40~90mm, 0.5mm step
Speed of measurement0.1s
DisplayJD-2600A: 7” TFT LCDJD-2600B: 5.6” TFT LCD
PrinterThermal printer
Dimension222(D)mmX161(W)mmX372(H)mm
Package515(H)mmX320(W)mmX390(D)mm
Weight~5.5kg
Power supply100~240V   50~60Hz
