Auto Lensmeter

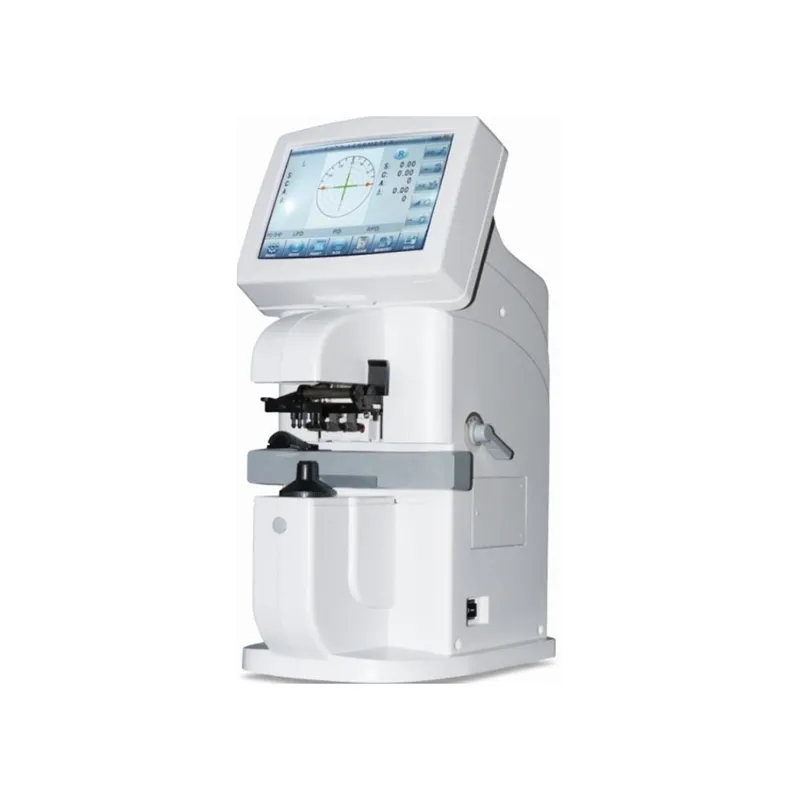

HSP-JD2000/HSP-JD2000B Auto Lensmeter
HSP-JD2000/HSP-JD2000B Auto Lensmeter

HSP-JD2000/HSP-JD2000B Auto Lensmeter

Model: HSP-JD2000

Product origin: China

Warranty: 1 Year

After-sales Service: Online Technical Support


Share:

Main Features

1.Tilting LCD display screen

-Tilting color screen provides you with clear view from any position such as sitting and standing.

2.Sensitive touch LCD display screen

-You just touch the screen to finish your measurement, the operation could be easier and more convenient.

3.Measurement menu

-Easy to use with recognizable icons.

-The HSP-JD2000 series provide a user-friendly graphical interface for an immediate understanding.

4.Progressive measurement

-A graph helps the operator to improve accuracy and speed in the measurement of near and far vision.

-Automatic recognition of single and progressive lens

5.Hi-speed UV measurement

-Just hold the lens through the sensor, the display will easily indicate the UV measurement by the progress bar.

6.Built-in thermal printer

-Quick data print with built-in printer. Easy to reload printing paper.

Specification

Range of measurement
Spherical0~±25D 0.01/0.12/0.25D step
Cylinder0~±9.99D 0.01/0.12/0.25D step
Axis0~180° (1° step)
Add0~+9.99D 0.01/0.12/0.25D step
PD0~15  0.01/0.12/0.25D step
Measurement mode
Cylinder+,+/-,-
PrismX-Y, P-B
Contact lensSoft/hard
Measuring modeSingle/progressive/ automatic recognition
Specification
Diameter of lensΦ20~108mm
PD40~90mm, 0.5mm step
Speed of measurement0.1s
Display7” TFT LCD
PrinterJD-2000: Thermal PrinterJD-2000B: No Printer
DimensionJD-2000&JD-200B:196mmX286mmX442mm
Weight~6kg
Power supply100~240V   50~60Hz
