Product Description

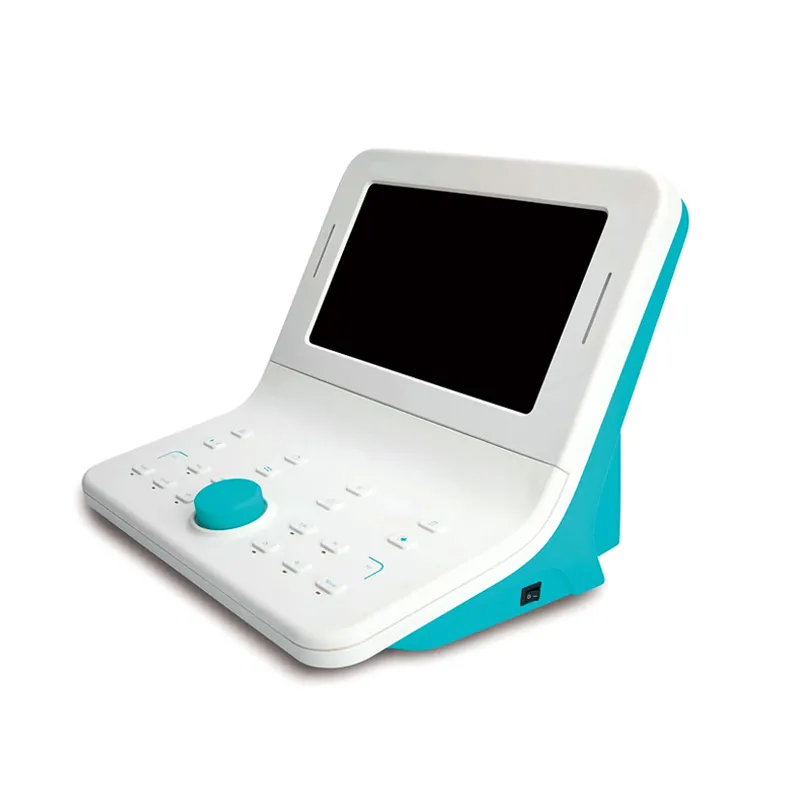

The AiSW2101 Middle Ear Analyzer (Type 1) is a clinical diagnostic impedance audiometer designed for comprehensive middle ear function assessment. It provides fast, accurate, and objective measurements without relying on patient subjective responses, making it especially suitable for infants, children, and uncooperative patients.
The system integrates an admittance measurement unit, pressure control system, and acoustic reflex stimulation system to evaluate the acoustic compliance of the tympanic membrane and ossicular chain. By analyzing sound pressure variations within the ear canal, the device enables clinicians to diagnose various middle ear pathologies effectively.
Key Features
• Type 1 clinical diagnostic middle ear analyzer (IEC compliant)
• Objective testing (no patient response required)
• Automatic and manual tympanometry
• Acoustic reflex threshold, decay, and latency testing
• Eustachian tube function (ETF) testing
• High-frequency tympanometry support
• Built-in thermal printer for instant reports
• Internal storage and direct data access without PC
• USB connectivity for computer integration
• Suitable for infants, children, and adults
Specifications
General
• Model: AiSW2101
• Type: Diagnostic Middle Ear Analyzer (Type 1)
• Standard: IEC 60645-5:2004 (Type 1)
Measurement System
• Measurement Type: Admittance (Impedance)
• Tympanogram Range: 0 ml – 2 ml / 0 ml – 8 ml
• Accuracy: ±5% or ±0.1 ml
Probe Tone
• Frequencies: 226 Hz / 678 Hz / 800 Hz / 1000 Hz
• Levels:
85 dB SPL (226 Hz)
70 dB SPL (others)
Tympanometry
• Pressure Range: -600 to +200 daPa
• Safety Limits: -800 to +600 daPa
• Sweep Rates: 50 / 100 / 200 / 400 / 600 daPa/s
• Modes: Automatic & Manual
Acoustic Reflex Tests
• Modes:
Automatic threshold
Fixed intensity
Growing intensity
Manual mode
• Frequencies: 0.5 / 1 / 2 / 4 kHz or noise
• Ipsilateral & contralateral stimulation
Additional Tests
• Acoustic Reflex Decay (2–10 sec adjustable)
• Acoustic Reflex Latency
• Eustachian Tube Function (ETF)
• Combination Test Sequences (programmable)
Display & Interface
• Display: 10-inch color TFT LCD
• Resolution: 1024 × 600
• Interface: USB connection
• Built-in thermal printer (80 mm paper)
Power & Physical
• Power Supply: 12V DC (medical-grade adapter)
• Power Consumption: <30 VA
• Dimensions: 290 × 265 × 235 mm
• Weight: 3.4 kg
Calibration
• Calibration Validity: 12 months
• Software-based parameter configuration
Applications
• Hospital ENT departments
• Audiology clinics
• Hearing diagnostic centers
• Pediatric hearing assessment
• Occupational health screening
• Community hearing programs
