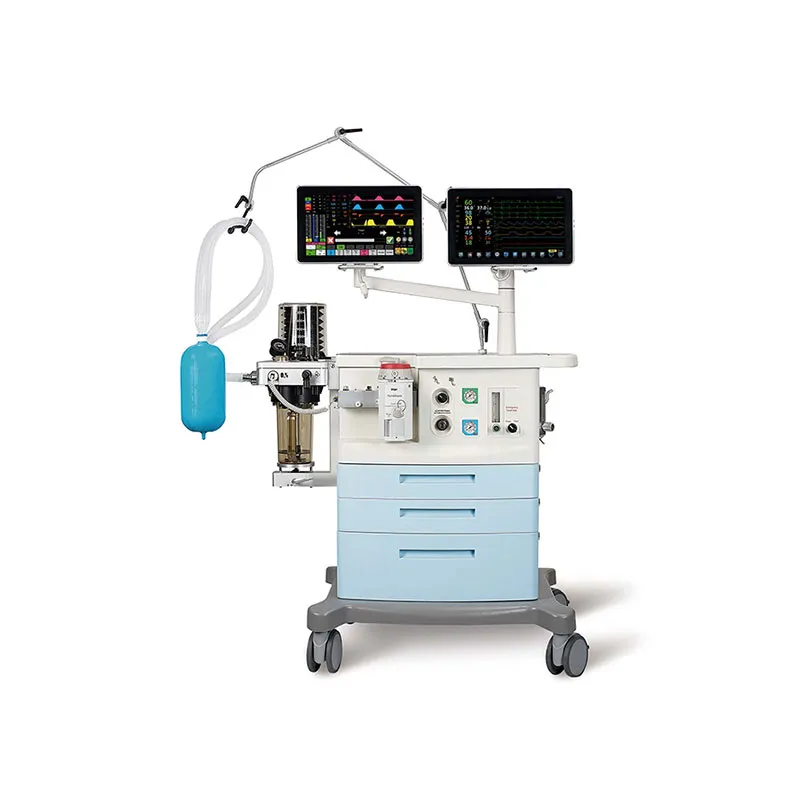

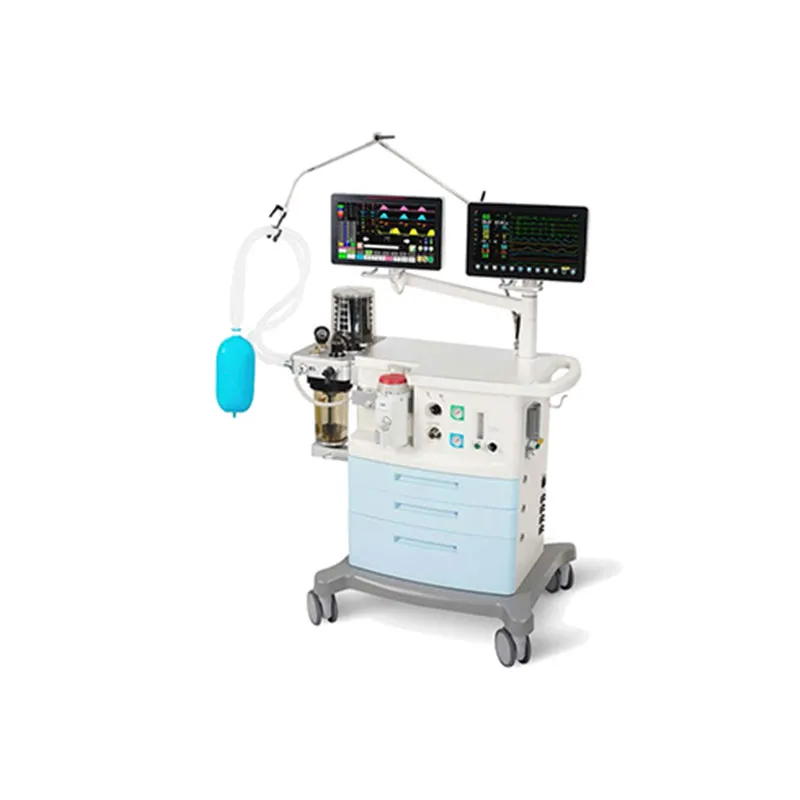

HSP-N7 Anesthesia Workstation Integrated Ventilator & Electronic Gas Control

Model: HSP- N7

Product origin: CHINA

Warranty: 1 Year

After-sales Service: Online Technical Support

Inquire Now Add to Basket Next Product

Description
Download

HSP-N7 anesthesia workstation takes the feature-rich anesthesia system to a new level. Full electronic flowmeter for more accurate setting, more conveniently observe and longer duration, to fully meet the needs of all your patients.
The anesthesia machine consists of anesthetic gas delivery system, anesthetic gas delivery device (optional Draeger evaporator or Penlon evaporator enflurane, isoflurane, sevoflurane, desflurane and isoflurane, five kinds of anesthetics) anesthesia ventilator, electronic flowmeter assembly, anesthesia and ventilation systems, anesthesia gas purification system transmission and collection system, module monitoring (optional AG module, CO2 module, BIS module and multi parameter patient monitor).

Main Features

-15.6" TFT touch screen, integrated patient monitor design.

-Dual touch screen, special and simple-operation screen layout.
-User friendly design interface, easy to operate.
-Human engineering design, rotatable supporting arm and adjustable angle.
-Product dimension: 1490mm x 900mm x660mm
-Auto-test guidance, visual operation guidance
-Full-electronic control and electronic flow meter, precise control and accurate data monitoring. In line with respiratory physiology, avoid man-machine confrontation
-All ventilation modes to satisfy neonate, pediatric and adult patients.
-Integrated breathing circuit with built-in heater.
-Fully-Electronic for flow meters (Unique design), functional-test: including system leakage and compliance, calculation, automatic switchover.
-Calculation, automatic switchover, if O2/NO2/Air deficiency: O2←→Air, N2O←→O2
-Fully-Electronic fresh gas flow control (Unique design), gas supply measured by presure sensor.
-Electronic and Mechanical Flush O2.
-Bypass switch, absorb switch status detect, 4 wave display in the same screen.

Specification

Work Surface	Height(With casters) 149cm (58.6 inch) Width 90cm (35.4 inch)Depth 65.6cm(25.8 inch)Safe shelf loading 15 kg±0.5kg
Screen	15.6 inch TFT LED screen, 1366*768 pixels (17”/19” Optional)
Gas control & supply	Electronic control gas mixer, O₂, N₂O, Air
Position for vaporizer	Dual positions (Selectatec bar)
ACGO	Standard
Electronic Flowmeter	O₂, Air and N₂O(numerical/bargraph)
By-pass	Standard
Ventilator Software	V-CMV, P-CMV, V-SIMV, P-SIMV, PRVC, PRVC-SIMV, Manual/Spont, CPAP, PSV, HLM
Spirometry loop	P-V,P-F,F-V, reference Loop
Spare Cylinder yoke	Optional (O₂, N₂O )
Li-ion Battery	1 battery, 4800mAhOptional (2 batteries, 9600mAh)
AGSS	Optional
Waveforms	Up to 4 waveforms
Auxiliary power outlets	4
Castors	Four castors(dual wheels 125mm) with 4 separate brakes
Drawers	3 with lock
Reading lamp	LED lighting Included
Gas monitor module	Optional（CO₂, AG）
Built-in Heater	Standard
O₂ cell	Standard
Vaporizer	Optional (Draeger/Penlon/Northern)
Patient monitor	Optional
Suction Device	Optional
