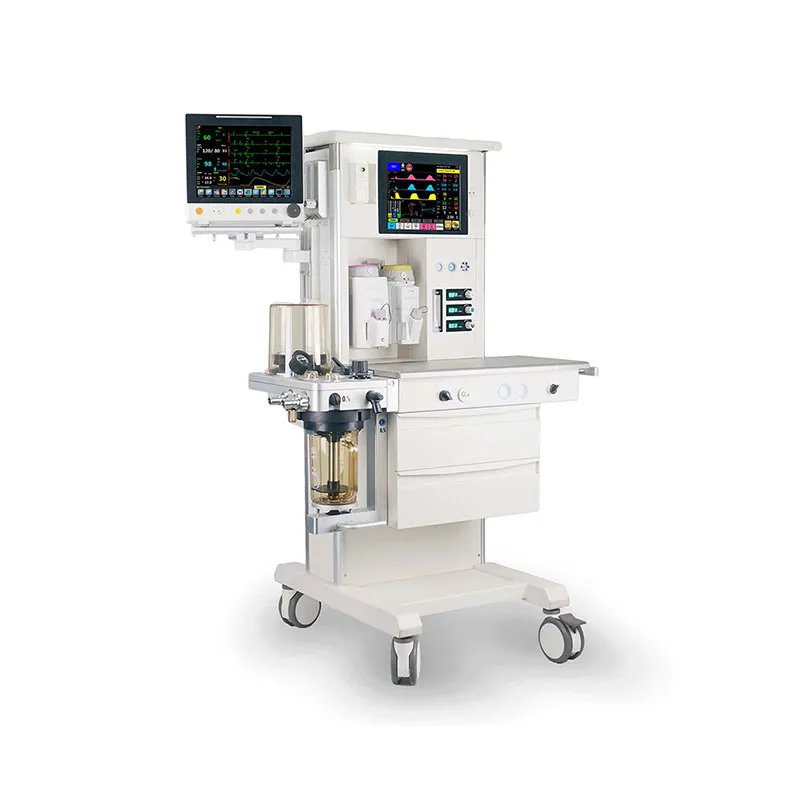

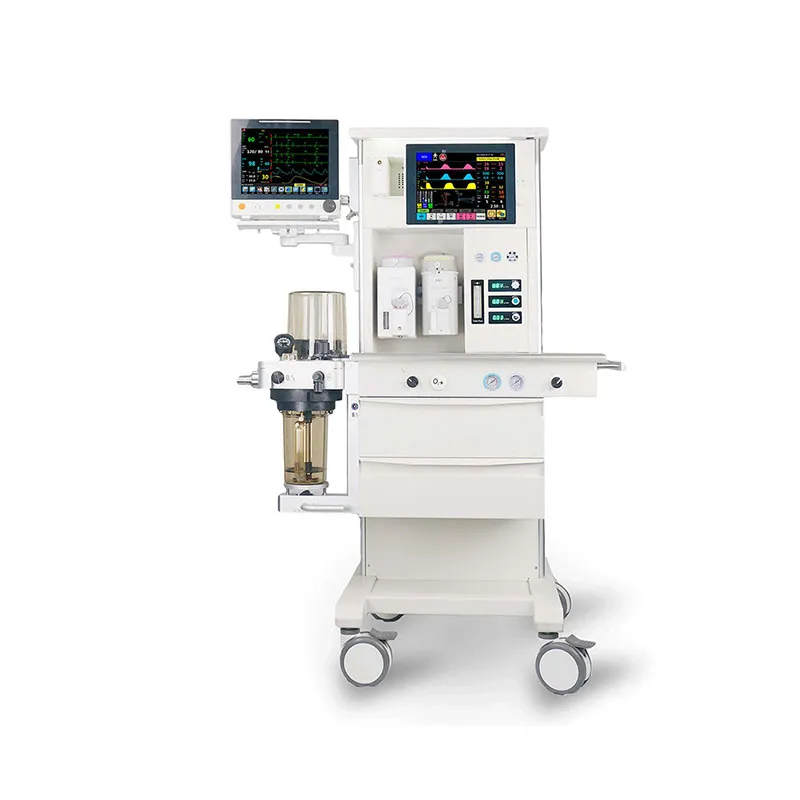

HSP-N5 High Pressure Anesthesia Machine Workstation

Model: HSP-N5

Product origin: CHINA

Warranty: 1 Year

After-sales Service: Online Technical Support

Inquire Now Add to Basket Next Product

Description
Download

Anesthesia Machine consists of anesthetic gas delivery system, anesthetic gas delivery device (optional Draeger evaporator or Penlon evaporator enflurane, isoflurane, sevoflurane, desflurane and isoflurane, five kinds of anesthetics) anesthesia ventilator, electronic flow-meter assembly, anesthesia and ventilation systems, anesthesia gas purification system transmission and collection system, module monitoring (optional AG module, CO2 module, BIS module and multi parameter patient monitor). Precise setting of semi-electronic flow-meter, accuracy and stability ensured by high quality key components, real-time calibration to ensure accuracy.

Main Features

- 12" color TFT LCD resistive touch screen, 800x600 pixels (15.6" optional)

- User friendly design interface, ease-to-use

- Tidal volume 10-1500 mL, minimum VT 10ml under VCV

- Mechanical control mixer, electronic flowmeter

- 2 position selectatec® mounting for vaporizers

- PPSU/Metallic autoclavable material of birthing circuit

- Integrated breathing circuit with built-in heater

- Fresh gas, compliance and leakage compensation

- Full ventilation modes : V-CMV, P-CMV, V-SIMV, P-SIMV, PRVC, PRVC-SIMV, Manual/Spont, CPAP, PSV, HLM

- ACGO for open circuit

- Alarms of incorrect installation of breathing system and soda lime canister

- Two-sided guide rails for patient monitor, support arm and injection bump (optional)

- Stainless steel material workbench with big surface, corrosion resistant

- LED lights equipped to provide lighting for the workbench

- Innovative one-hand operation designed of changing CO2 absorber

- By-Pass design ensures safely to renew soda lime during operation

Specification

Dimensions	Height(With casters ) 130cm±1cmWidth90cm±1cmDepth 1cm±1cmSafe shelf loading 25 kg±0.5kg
Screen	12 inch TFT LCD touch screen, 800x600 pixels (15.6 inch optional)
Gas supply	O₂, N₂O, AIR
Selectatec bar	Dual positions
ACGO	Standard
Flowmeter	Electronic Flowmeter
By-pass	Standard
Ventilator Software	V-CMV, P-CMV, V-SIMV, P-SIMV, PRVC, PRVC-SIMV, Manual/Spont, CPAP, PSV, HLM
Spirometry loop	P-V,P-F,F-V, reference Loop
Spare Cylinder yoke	Optional (O₂, N₂O )
Li-ion Battery	1 battery, 4800mAh,2 batteries, 9600mAh (Optional)
AGSS	Optional
Waveforms	Up to 3 waveforms, user configurable
Auxiliary power outlets	3
Wheels	Four wheels (125mm) with 2 separate brakes
Drawers	2
Reading lamp	LED lighting Included
Gas monitor module	Optional（CO₂, AG）
Built-in Heater	Standard
O₂cell	Standard
Vaporizer	Optional (Draeger/Penlon/Northern)
Patient monitor	Optional
Suction Device	Optional

Work Surface	Height(With casters) 149cm (58.6 inch) Width 90cm (35.4 inch)Depth 65.6cm(25.8 inch)Safe shelf loading 15 kg±0.5kg
Screen	15.6 inch TFT LED screen, 1366*768 pixels (17”/19” Optional)
Gas control & supply	Electronic control gas mixer, O₂, N₂O, Air
Position for vaporizer	Dual positions (Selectatec bar)
ACGO	Standard
Electronic Flowmeter	O₂, Air and N₂O(numerical/bargraph)
By-pass	Standard
Ventilator Software	V-CMV, P-CMV, V-SIMV, P-SIMV, PRVC, PRVC-SIMV, Manual/Spont, CPAP, PSV, HLM
Spirometry loop	P-V,P-F,F-V, reference Loop
Spare Cylinder yoke	Optional (O₂, N₂O )
Li-ion Battery	1 battery, 4800mAhOptional (2 batteries, 9600mAh)
AGSS	Optional
Waveforms	Up to 4 waveforms
Auxiliary power outlets	4
Castors	Four castors(dual wheels 125mm) with 4 separate brakes
Drawers	3 with lock
Reading lamp	LED lighting Included
Gas monitor module	Optional（CO₂, AG）
Built-in Heater	Standard
O₂ cell	Standard
Vaporizer	Optional (Draeger/Penlon/Northern)
Patient monitor	Optional
Suction Device	Optional
