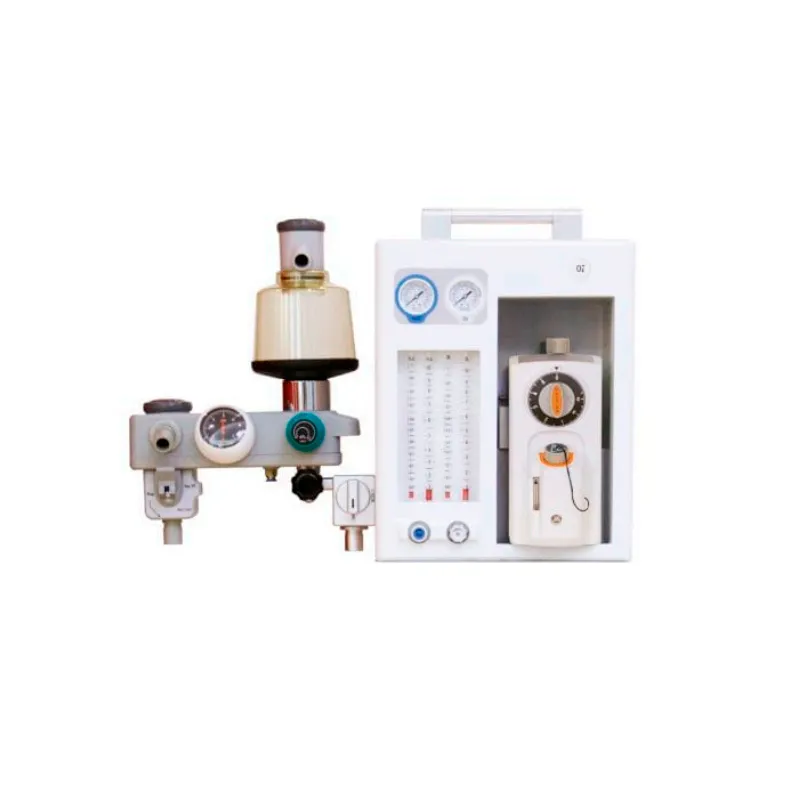

HSP-101A Portable Medical Anesthesia Machine

Model: HSP- 101A

Product origin: CHINA

Warranty: 1 Year

After-sales Service: Online Technical Support

Inquire Now Add to Basket Next Product

Description
Download

Main Features

-Portable design, easy to operate, saving operating room space.
-Molded production, with light weight, anti-rust and other advantages.
-Integrated breathing circuit design, simple operation and clear equipment.
-The breathing circuit is also equipped with a 0.8L CO2 absorber.
-APL valve design can set the pressure limit under manual control.
-4 tubes O2 and N2O flow meter, support low flow anesthesia.
-Self-designed high-precision vaporizer, with flow, pressure, temperature compensation, self-locking structure.
-High accuracy of anesthesia control.
-Different types of animal masks.

Specification

Physical Specifications
Dimensions	504632
Weight	22kg
Casters	Front wheels with lock
Pipeline Supply
Gas configuration	O2, N2O
Pipeline input range	280-600Kpa
Modes of Ventilation
Manual	Manual
Ventilator Parameter
Working type	Pneumatic driven
System Standard
Hypoxic guard system	N2O cut-off valve, O₂ concentration >25%
APL valve	<6kPa
O₂ Flush	25-75L/min
volume of CO₂absorber	0.8 L(Optional for 1.6L CO₂ absorber)
Flow meter	4 tubes,Cascade 0.1-10L/min O₂,01-10L/min N₂O
Vaporizer	1 unit.(lsoflurane/Enflurane/Sevoflurane/Halothane)
Optional
Anesthesia ventilator (CWH-1010,1020)

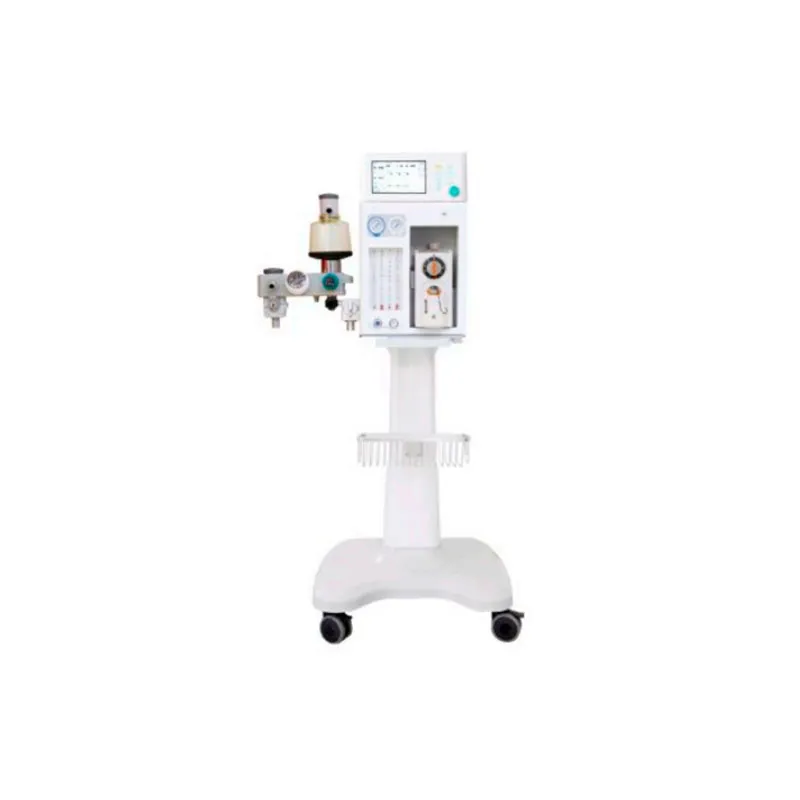

Trolley
AGSS

Work Surface	Height(With casters) 149cm (58.6 inch) Width 90cm (35.4 inch)Depth 65.6cm(25.8 inch)Safe shelf loading 15 kg±0.5kg
Screen	15.6 inch TFT LED screen, 1366*768 pixels (17”/19” Optional)
Gas control & supply	Electronic control gas mixer, O₂, N₂O, Air
Position for vaporizer	Dual positions (Selectatec bar)
ACGO	Standard
Electronic Flowmeter	O₂, Air and N₂O(numerical/bargraph)
By-pass	Standard
Ventilator Software	V-CMV, P-CMV, V-SIMV, P-SIMV, PRVC, PRVC-SIMV, Manual/Spont, CPAP, PSV, HLM
Spirometry loop	P-V,P-F,F-V, reference Loop
Spare Cylinder yoke	Optional (O₂, N₂O )
Li-ion Battery	1 battery, 4800mAhOptional (2 batteries, 9600mAh)
AGSS	Optional
Waveforms	Up to 4 waveforms
Auxiliary power outlets	4
Castors	Four castors(dual wheels 125mm) with 4 separate brakes
Drawers	3 with lock
Reading lamp	LED lighting Included
Gas monitor module	Optional（CO₂, AG）
Built-in Heater	Standard
O₂ cell	Standard
Vaporizer	Optional (Draeger/Penlon/Northern)
Patient monitor	Optional
Suction Device	Optional
