Model: HSP-YKL
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support
Model: HSP-YKL
Product origin: CHINA
Warranty: 1 Year
After-sales Service: Online Technical Support

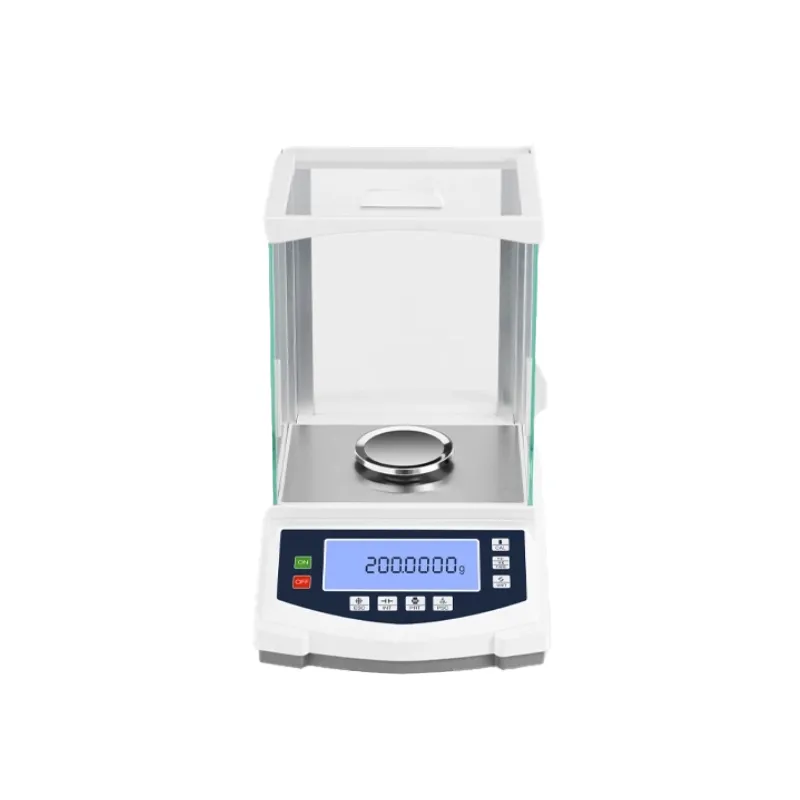

The HSP-YKL analytical balance is a high-precision laboratory instrument designed for reliable and fast measurements. Equipped with internal auto-calibration, a high-precision electromagnetic sensor, and a clear LCD display, it delivers consistent results across various capacities (100g–310g). Its large detachable glass draft shield minimizes air interference, while the durable stainless steel pan ensures long-lasting performance. Tare, counting, and unit conversion functions make it suitable for laboratory research, quality control, educational, and industrial applications.
Main Features
-Internal auto-calibration ensures consistent accuracy.
-High-precision electromagnetic sensor delivers stable results.
-Clear LCD display with white backlight for easy reading.
-Detachable glass draft shield with three sliding doors reduces air disturbance.
-Stainless steel pan and countertop for durability and easy cleaning.
-Tare function and counting mode for flexible weighing.
-Multiple unit options (grams and carats) for versatile applications.
-Overload and fault alarms provide safety and protection.
-Adjustable leveling feet with level indicator for stable setup.
-RS232 interface for data connectivity and external devices.
Specification
| Model | HSP-YKL1004 | HSP-YKL1204 | HSP-YKL2004 | HSP-YKL2204 | HSP-YKL3104 |
| Max weighing(g) | 100g | 120g | 200g | 220g | 310g |
| Division(g) | 0.1mg | ||||
| Min weighing(g) | 10mg | ||||
| Preheating time | 30min | ||||
| Stable Time | ≤4s-5s | ||||
| Display | LCD display | ||||
| Pan Size | Φ80mm | ||||
| Operation temp | 22℃±2.5℃ | ||||
| Repeatability | ±0.3mg | ||||
| Liner error | ±0.5mg | ||||
| Draft shield size | 183×192×224mm | ||||
| Dimension | 340×220×340mm | ||||
| Packing size | 505×348×490mm | ||||
| Calibration | Internal calibration | ||||
| Cal.weights | 100g F1 | 200g F1 | |||
| Interface | RS232(standard) | ||||
| Power Supply | 100-240V 50/60Hz Out DC 5V 3A | ||||
| N.weight | Internal: 5.9 kg | ||||
| G.weight | Internal: 7.7 kg | ||||
